Magene EXAR Carbon Fiber Wheelset Ultra (2025)

The Magene EXAR Carbon Fiber Wheelset Ultra (2025) is a high-value, deep-section aero wheelset praised for its modern features, performance, and competitive pricing around $1,200. Reviewers highlight its wide internal width, carbon bladed spokes, ceramic bearings, and excellent crosswind stability, though they note minor drawbacks such as lack of pre-installed rim tape and aesthetic concerns with the gold decals.

Pros

Excellent value at $1,200 with modern features.1 2
Deep aero profile (staggered depths) for speed on flats and good crosswind stability.1 2
Wide internal width (23mm) optimizes for 28-30c tires.1 2
Carbon bladed spokes and ceramic bearings included.1 2
Star ratchet hub design (36-tooth) is quiet and easy to service.1 2
Lightweight for the depth (around 1,375-1,495g depending on model).1 2
Less harsh/stiff than previous Magene wheels with thinner spokes.1
Comes with spare spokes and has a 2-year warranty.2
Decent quality according to Hambini.3

Cons

Does not come with tubeless rim tape pre-installed (includes valves/plugs).1 2
Carbon bladed spokes are not as stiff as some competitors' or previous Magene models.1
External width (30mm rear/32mm front) not ideal for 32c tires.1
Gold decal color may not match all bike/tire color schemes.1 2
Weight (1,495g without tape/plugs) is within tolerance but not the lightest.1
No spring behind the freehub body on one wheel (initially stuck, but fixed after cleaning).2
Wider internal rim width may lead to using wider tires, potentially adding weight.2

Key Facts

Price: $1,199-$1,200 USD1 2
Claimed weight: 1,460g (DB607 Ultra); actual weight 1,495g without tape/plugs. DB508 Ultra: approximately 1,375g without rim tape, 1,389g with rim tape.1 2
Internal rim width: 23mm; external width: 30mm rear/32mm front (DB607 Ultra) or 30mm (DB508 Ultra).1 2
Rim depths: DB607 Ultra: 67mm rear/60mm front; DB508 Ultra: 50mm front/58mm rear.1 2
Spokes: wide carbon bladed spokes (~5mm) with side-entry lacing design.1
Hub: star ratchet design (36-tooth, upgradable) with ceramic bearings, center lock, available with Shimano or XDR freehub bodies.1 2
Hooked rims compatible with clincher or tubeless setups.2
Warranty: 2 years for manufacturing defects.2

Sources

1
Patrick LinoThe New AERO King! Magene EXAR DB607 Ultra Wheels
2
GC PerformanceMagene EXAR Carbon Wheels Set the Bar HIGH!!! *MAGENE EXAR DB508 ULTRA*
3
HambiniMagene’s Wide Wheels Are INSANE – Hidden Nipples, Carbon Spokes & Zero Flex

Reviews & Ratings

GC Performance

19:42

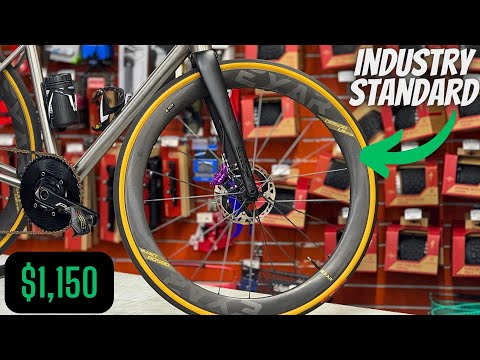

Magene EXAR Carbon Wheels Set the Bar HIGH!!! *MAGENE EXAR DB508 ULTRA*

The reviewer extensively tests and praises the Magene EXAR Carbon Fiber Wheelset Ultra (2025), highlighting its competitive price point, performance, and features. He notes it's Magene's top-tier wheelset, which he used for about 400 miles in various riding conditions, and found it to be a high-quality, lightweight option that competes with major brands.

January 31, 2024Watch on YouTube

Patrick Lino

17:42

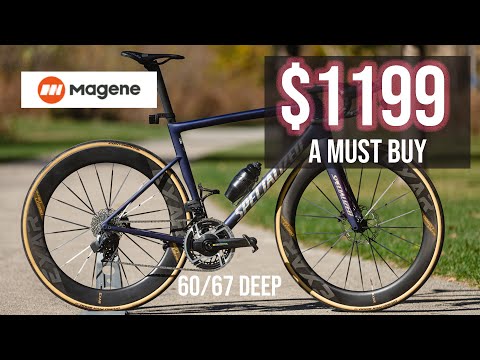

The New AERO King! Magene EXAR DB607 Ultra Wheels

The reviewer provides an enthusiastic review of the Magene EXAR Carbon Fiber Wheelset Ultra (2025), highlighting its modern features, performance, and value at $1,200. He notes it's their flagship deep-section wheelset with 67mm rear/60mm front depth, carbon bladed spokes, star ratchet hub, ceramic bearings, and wide internal width optimized for 28-30c tires. The reviewer states these wheels are among his top five favorites and a 'no-brainer' for those seeking deep aero wheels.

November 02, 2024Watch on YouTube

Hambini

09:11

Magene’s Wide Wheels Are INSANE – Hidden Nipples, Carbon Spokes & Zero Flex

The reviewer briefly mentions the Magene EXAR Carbon Fiber Wheelset Ultra Series 2025 but does not provide detailed analysis.

July 25, 2025Watch on YouTube
