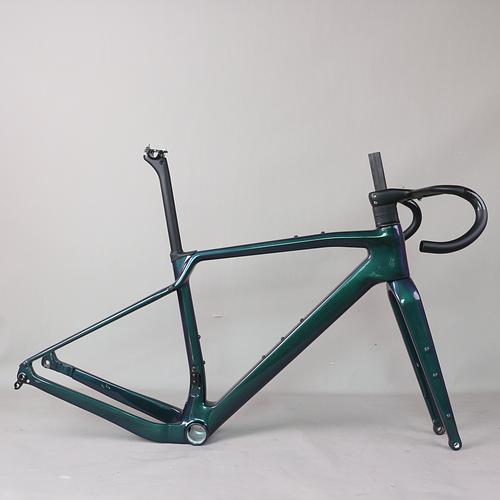

TanTan GR047

The TanTan GR047 is a budget-friendly carbon gravel frameset praised for its stiffness, wide tire clearance, and T47 threaded bottom bracket, but users report inconsistent quality control, including seatpost clamp issues, a broken fork, and rough internal finishing. Overall, it offers good value for the price, though assembly may require attention.

Pros

Stiff frame with good power transfer.1
Wide tire clearance (up to 2.2" front, 2.1" rear with 700c).1
T47 threaded bottom bracket for easier serviceability and reliability.2
Good value for the price (complete build under 1400€ possible).1
Frame interior smooth with no rough edges or shredded carbon strands after a year of use.3
Paintwork held up well with only minor scratches and wear from accessories.3
Frame and fork weights are reasonable (1.25 kg frame, 450 g fork).2
Comes with extra bearings, spacers, and adapters for headset.2

Cons

Quality control issues: epoxy in BB threads, buried brake inserts, rough headset cups.2
Seatpost clamp does not fit properly (gap between clamp and post).1
Included seatpost (zero offset, single bolt) cannot keep seat angle from slipping.2
Fork broke after 782 km (warranty replaced but quality concern).1
Defective bottom bracket shell shortly after warranty, no customer support.1
Headset compatibility issues with some integrated cockpits.1
Small piece of carbon fiber layup sticking out inside the seat tube.3
Paint rubbed off at the bottom of the fork where a light was clamped; matte effect worn off handlebars and head tube where frame bag contacted.3

Key Facts

Frame cost £560 from China; complete builds under 1400€ possible.3 1
Frame weight approximately 1.25 kg, fork around 450 g.2
T47 threaded bottom bracket for Shimano cranks.1 2
Tire clearance: 700c up to 53mm front, 48-50mm rear; 650b up to 2.2" front, 2.1" rear.1
Seatpost diameter 27.2mm round.1
Fender mounting points present.1
Delivery time approximately 5 weeks from order to arrival.1
Geometry similar to Wilier Jena.2

Sources

1 MTB-NewsGravelbike mit Tantan GR047 Rahmen [A]
2 ChinertownTanTan / Seraph new frame... GR047
3
Peter TreadwayDid an internal inspection of my Chinese gravel bike find any issues? One year review.

Reviews & Ratings

Peter Treadway

24:59

Did an internal inspection of my Chinese gravel bike find any issues? One year review.

The reviewer analyzed the TanTan GR047 frame after a year of use, noting it cost £560 from China. They inspected the frame internally and externally, finding it held up well with no major issues.

June 22, 2025Watch on YouTube

MTB-News on MTB-News5 months ago

Gravelbike mit Tantan GR047 Rahmen [A]

The TanTan GR047 is a carbon gravel frameset praised for its stiffness, good value, and ability to fit wide tires (up to 2.2" front, 2.1" rear with 700c). Users report delivery times around 5 weeks. However, quality control issues include a poorly fitting seatpost clamp, a broken fork after 782 km, defective bottom bracket shell, and headset compatibility problems. Customer service is inconsistent, with some users receiving good support and others being ignored after warranty expiration.

AI Summary

Pros

Stiff frame with good power transfer
Wide tire clearance (up to 2.2" front, 2.1" rear)
Good value for the price (complete build under 1400€ possible)

Cons

Seatpost clamp does not fit properly (gap between clamp and post)
Fork broke after 782 km (warranty replaced but quality concern)
Defective bottom bracket shell shortly after warranty, no customer support

more cons in the review

Key Points

Frame material: Carbon (UD Gloss available)
Delivery time: ~5 weeks from order to arrival
Frame weight: not explicitly stated, but builds under 9 kg achieved

more key points in the review

View Thread

Component Deals & Selection on Chinertown5 months ago

TanTan / Seraph new frame... GR047

The TanTan GR047 is a Chinese gravel frameset featuring a T47 threaded bottom bracket, which is praised for easier serviceability compared to press-fit. The frame geometry appears similar to the Wilier Jena. Weights are approximately 1.25 kg for the frame and 450 g for the fork. The frame uses a T47 BB, which is a rarity among Chinese frames. Some users reported minor quality issues such as epoxy in threads, buried brake inserts, and rough headset cups. The included seatpost (zero offset, single bolt) was criticized for slipping. Overall, the frame is considered a good value but may require some cleanup and careful assembly.

AI Summary

Pros

T47 threaded bottom bracket for easier serviceability and reliability
Good customer service from TanTan when paint issues occurred
Frame and fork weights are reasonable (1.25 kg frame, 450 g fork)

more pros in the review

Cons

Quality control issues: epoxy in BB threads, buried brake inserts, rough headset cups
Included seatpost (zero offset, single bolt) cannot keep seat angle from slipping
Potential for paint mismatch or errors (off-by-one paint code)

more cons in the review

Key Points

T47 threaded bottom bracket
Frame weight ~1.25 kg, fork ~450 g
Geometry similar to Wilier Jena

more key points in the review

View Thread

Purchase

Where to Buy

TanTan Full Internal Cable Disc Gravel Bike Frame GR047 Custom Paint Chameleon 0218 T47 Thread Max Tire 700*47C

tantanbikes.comOFFLINE

$527.88

Price last checked 5 months ago

$527.88· tantanbikes.com

View Deals

Specifications

Attributes

Frame TypeGravel

Frame MaterialCarbon

Brake MountFlat Mount Disc

Bottom BracketT47

Seatpost27.2mm

Front Axle12x100mm Thru-Axle

Rear Axle12x142mm Thru-Axle

Max Tire Width47 mm

Headset Type1-1/8" → 1-1/4" Tapered (IS42/28.6 | IS47/33)

Shifting SupportMechanical & Electronic

Max Chainring Size—

UDH Compatible—

Includes CockpitYes

Geometry on BikeInsights

Stack : Reach1.55

2022 Base

S M L L L L XL XL

Included Components

TanTan GR047

Frame

1,250g

GR047 Fork

Fork

437g

GR047 Seatpost

Seatpost

179g

HB047 Handlebar

Handlebar

348g

Total Weight2,214g
