Reviews & Ratings
dbike on YouTubealmost 4 years ago
00:32:29
The reviewer shares his 4-5 year experience with the Dengfu R01 Ultralight frame, covering the ordering process, a detailed physical inspection, weight measurement, and a CT scan analysis of the carbon layup and potential voids.
AI Summary
Pros
- Good price ($550 for frame set, $619 total with shipping/fees)
- Flawless and fast email communication with the seller
- Quick shipping (about 1.5 weeks to Europe)
- Frame was well-packaged and protected
- Frame fits the reviewer perfectly (58cm for 193cm height)
- No major complications over 25,000 km of use
- Never had any creaking issues with the bottom bracket
- Frame weight is roughly below 1000g for an XL size with some components still attached, close to the claimed 850g ±50g
- Fork weight is 336g (with bearing race attached)
- Bottom bracket has an aluminum shell molded into the frame, which the reviewer believes contributes to high tolerances and plain faces
- Most tube areas (down tube, head tube, top tube, seat tube) show nice carbon layup with no or minimal voids
- Some mating areas (e.g., seat tube/top tube junction, brake caliper mount) look well-connected and reinforced with no critical voids
- Overall, the reviewer is pretty happy with the frame apart from the bottom bracket area
Cons
- Bottle cage nut corroded and became stuck in the frame, a minor complication
- Bottom bracket is BB30, which requires adapters for Shimano's 24mm axle, which the reviewer finds not ideal and would prefer BB86
- The reviewer states the stiffness is 'not that great' due to the BB30 design
- Maximum tire clearance is 25mm (28mm does not fit)
- CT scan reveals voids in critical mating areas: significant voids in the lower part of the bottom bracket area, some voids in the chain stay/bottom bracket junction, and larger voids in the seat stay merger region
- The bottom bracket area is described as 'not optimal,' 'not very well made,' with 'lots of voids' that decrease stiffness
- Some voids are present in the drive-side chain stay (a normal tube area where they shouldn't be)
- Internal cable routing through the chain stay can be tough due to folded carbon layers
- The reviewer concludes the build quality is 'not the highest quality' and notes that voids at mating areas were expected, though not all are critical
Key Points
- Frame ordered in September 2017
- Ridden for roughly 25,000 km over 4-5 years
- Raw carbon matte finish, no custom paint
- Full internal cable routing
- BB30 bottom bracket
- Standard 27.2mm seatpost
- Size: 58cm (fits reviewer at 193cm)
- Max tire clearance: 25mm
- Frame weight claim: 850g ±50g
- Actual measured weight: below 1000g for XL with headset bearings, derailleur hanger, and bottle cage attached
- Fork weight: 336g (with bearing race)
- Bottom bracket features a molded aluminum shell
- CT scan used to inspect carbon layup and voids, with voxel sizes as small as 0.3mm for detailed regions
- Critical mating areas inspected: bottom bracket, chain stays, seat stays, top tube, seat tube junctions
Purchase
Where to Buy
$550.00· dengfubike.com
View DealsSpecifications
Attributes
Frame TypeRoad
Frame MaterialCarbon
Brake MountRim Brake
Bottom BracketBSA Threaded
Seatpost27.2mm
Front Axle—
Rear Axle—
Max Tire Width (mm)25
Headset Type1-1/8" to 1-1/2" Tapered
Di2 CompatibleYes
Max Chainring Size—
UDH Compatible—
Included Components

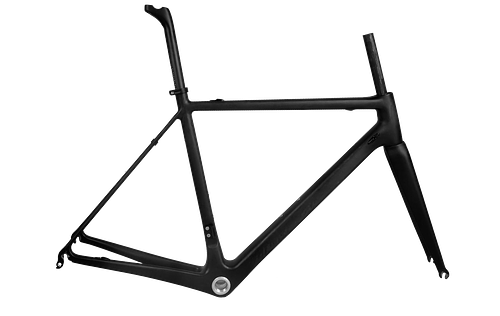

Dengfu R01 ULTRALIGHT FRAME
Frame45g
TORAY T800 carbon fiber, ultralight Fork
Fork—
TORAY T800 carbon fiber, 27.2mm diameter, 350mm Seatpost
Seatpost—
headset
Headset—
Total Weight45g
