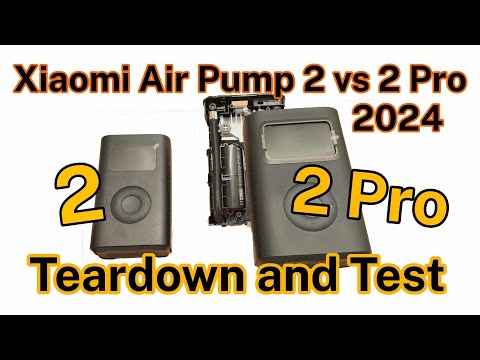

Xiaomi Mijia Portable Mi Air Pump 2 PRO vs 2 - 2X Faster! Review, Unbox, Test, Teardown
Larry
December 01, 2024
By popular viewer request, a teardown/review/test of the Xiaomi Mijia Mi Air Pump 2 Pro compared to the 2, also known as the Xiaomi Portable Electric Air Compressor 2 Pro. Measurements were made of performance, power consumption, noise, temperature, and other.
Summary:
The Mi Air Pump 2 Pro is much faster (2x) than the Mi Air Pump 2, but it's much larger, heavier, and uses more power, so despite having a larger battery, it has similar battery life. The build quality is decent as always, but the Air Pump 2 is probably good enough for most people unless you really want the flashlight. The accessories are either the same, or are compatible with the 2.
Video chapters:
00:00 Overview
01:38 Comparing 2 vs 2 Pro
04:30 Teardown
04:41 Teardown Discussion 1
06:16 Teardown Discussion 2
07:33 Teardown Battery Discussion
09:09 Teardown Discussion 3
13:31 Teardown Electronics Discussion
19:35 Testing and Testing Discussion
21:27 Test Results discussion
27:12 Comparison Table
Notes:
The PWM duty cycle after the motor slows down was measured by looking for the two distinct voltage spikes in zoomed in oscilloscope view (not shown), and determining the duty cycle and period by observing the timing. It is not an exact measurement.
The testing and analysis is not scientific and are the PERSONAL OPINIONS of the author ONLY. The author is NOT a professional scientist or engineer. The testing is not performed to specific standards and is APPROXIMATE only. There are many sources of error, including human error.
We do not recommend that you disassemble, or attempt to disassemble or repair devices as shown on this channel. If you decide to do so, any and all liability, safety or property or in any way, are solely your own responsibility and I make no guarantees about the correctness of any information in this video.
Devices were purchased at retail with the author's own money. The manufacturer nor the retailer is aware of this video nor has any effect on it.
The music has been skipped this time due to a viewer request. You are encouraged to play music in the background of your own choosing if this would improve your enjoyment.
Parts Mentioned
Xiaomi Mijia Air Pump 2
Mini-PumpXiaomi Mijia Air Pump 2
Created: February 18, 2026The reviewer compares the Xiaomi Mijia Air Pump 2 Pro to the previous Xiaomi Air Pump 2 model, noting that the Pro version is significantly larger, heavier, and features a larger battery, longer hoses, an added back flashlight, and improved cooling design. Testing shows it inflates about twice as fast but uses twice the energy and runs hotter, making it less efficient than the original model.
AI-Summary
Pros
- Twice as fast inflation (0.85 CFM vs 0.41 CFM)
- Longer included hoses
- Added back flashlight with multiple modes (top flashlight, back flashlight, SOS modes)
- Larger battery (3-cell vs 2-cell)
- Improved cooling design with heat sinks and cooling fins on cylinder
- Progress indicator on display
- Sturdier build with raised foot to prevent wobbling
- All-metal gearbox
Cons
- Twice the energy consumption (10.61 W·h vs 5.336 W·h for same task)
- Runs much hotter (reaches almost 100°C in 6 minutes)
- Less efficient overall
- Significantly larger and heavier (879g vs 476g)
- No speed control option
- Potential longevity concerns due to higher operating temperatures
- Some air leakage from button areas noted during testing
- Motor has sleeve bearings (though reviewer notes they're probably fine)
