The reviewer provides a detailed analysis of the XM Carbon Speed XMCS Gran Turismo frameset. They note it is a one-piece molded frame, which is complex and expensive to manufacture, contrasting it with typical multi-piece frames that have adhesive joints. The frame arrives with a fork, handlebars, seat post, headset spacers, bearings, and other accessories. It has a nude carbon finish with clear lacquer, a T47 bottom bracket, internal routing, an oversized headset, and dropped seat stays. The reviewer highlights the clean internal construction with no visible joints, good finishing on critical interfaces, and overall solid build quality. They mention it is not as high-end as brands like Evolved Chamers and lacks some accessories like a manual, but it is also not as expensive. They plan to build and ride it for further subjective feedback.
AI-Summary
Pros
- One-piece molded construction (no adhesive joints, stronger)
- Clean internal construction with no visible joints
- Good finish on critical areas (headset seats, bottom bracket threads)
- T47 bottom bracket with good threads
- Internal routing for cables/hoses
- Oversized headset (1.5" top and bottom)
- Removable front derailleur hanger for 1X compatibility
- Reasonable length head tube for more comfortable position
- Frame weight is 987g
- Fork weight is 393g
- Seat post weight is 133g
- Fork steer tube is round and concentric
- Dropouts are flat and smooth after finishing
- Handlebar has internal routing and dimpled top
- Abundance of headset spacers included
- Overall first impressions are positive with not a lot wrong
Cons
- Nude finish makes blemishes more visible (one small speck noted on top tube)
- Not as high quality as premium brands like Evolved Chamers
- Does not come with a manual or some expected accessories
- Seat post design appears backwards (sharper end at front)
- Some filler around hydraulic line ports on fork (deemed largely unavoidable)
- Pitched as not having all the bells and whistles
Key Points
- Frame is one-piece molded, not multi-piece with adhesive joints
- Frame weight: 987g
- Fork weight: 393g
- Seat post weight: 133g
- Bottom bracket: T47 (85.5mm or 86.5mm compatible)
- Headset: oversized 1.5" top and bottom
- Handlebar: 380mm wide, 130mm drop, 77mm reach, 100mm stem, -10°, internal routing
- Seat post: wedge clamp system with two rivnuts
- Finish: nude carbon with lacquer, shows reinforcement areas
- Logo: default is XMCS, can request 'Carbon Speed'
- Dropped seat stays
- Internal routing from handlebars through frame
- Fork has long steerer tube requiring cutting

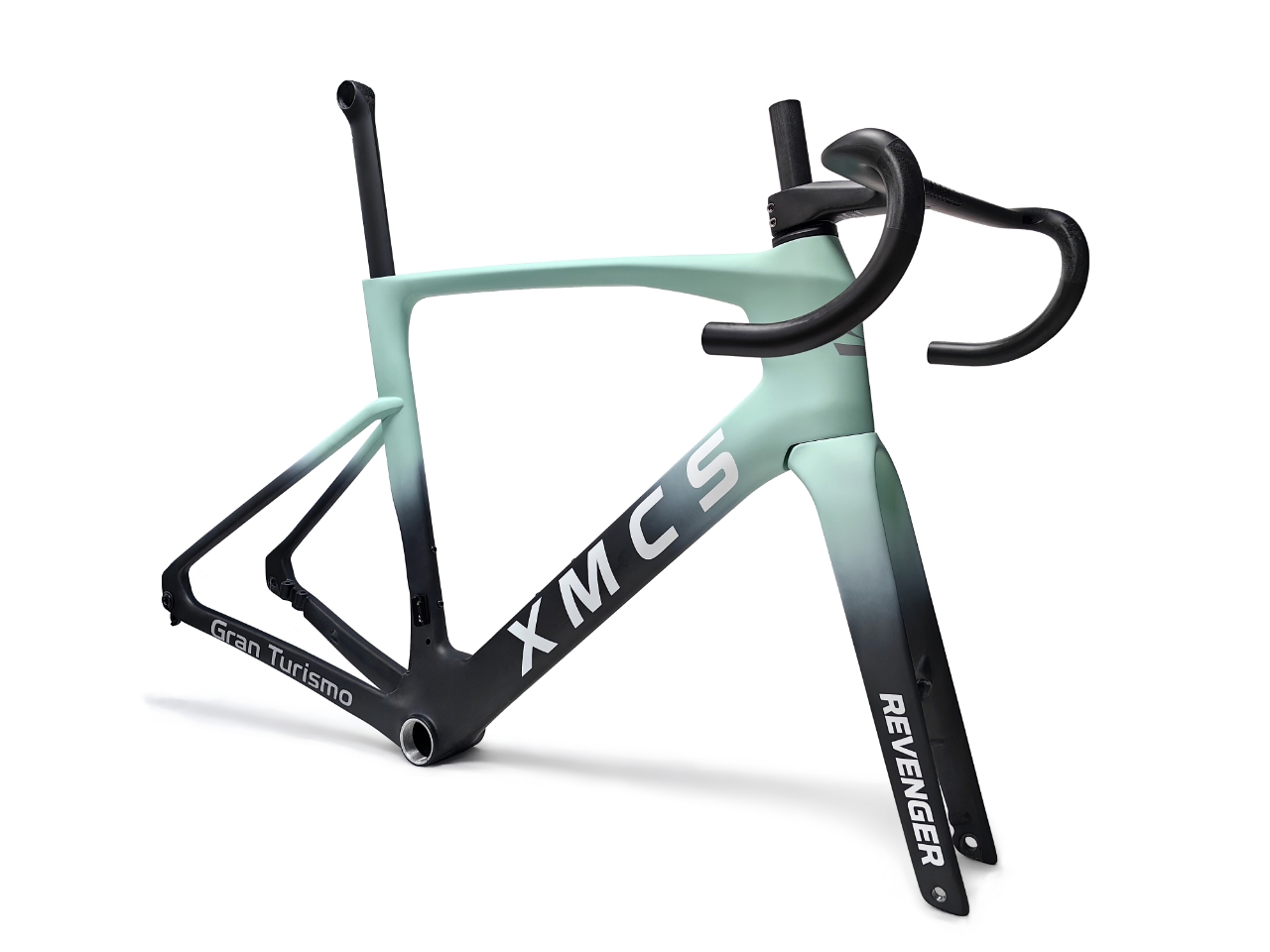

The XM Carbon Speed XMCS Gran Turismo frameset is an aero road bike with endurance geometry, featuring high stack and low reach for a comfortable yet aerodynamic riding position. It uses T800 carbon fiber with T47 bottom bracket standard, internal cable routing, and UDH hanger. Users report excellent build quality, smooth ride comfort, and stable handling, though some experienced issues with seatpost fit and mandatory branding on painted frames. The frame is designed for riders seeking an aero bike with relaxed geometry rather than aggressive racing posture.
AI-Generated Forum Summary
Pros
- Excellent build quality and finish with high-quality carbon fiber construction
- Comfortable endurance geometry with high stack and low reach for relaxed yet aero position
- Stable handling and good cornering despite long chainstays
- Smooth ride quality with good vibration damping
- Thoughtful design details like Di2 battery mount and quality hardware
Cons
- Seatpost fit issues - some users reported extremely tight or stuck seatposts
- Mandatory branding/decals on painted frames, with some users disliking the "Revenger" name and design
- Limited size range with high standover height, making it difficult for shorter riders
- Slack seat tube angle (73°) may not suit riders needing more forward saddle position
- Some quality control issues reported including resin damage, brake rotor rubbing, and thread problems
Key Points
- T800 carbon fiber construction
- T47 bottom bracket standard (threaded)
- Internal cable routing
- UDH (Universal Derailleur Hanger)
- Endurance geometry with high stack/low reach
- Aero tube shapes
- Approximately 1000g frame weight (size 56, unpainted)
- Clearance for up to 35mm tires
- Price range: $1000-$1500 depending on options
Frequently Asked Questions
What is the price of the frameset?
Prices range from approximately $1000 for unpainted frameset without handlebar to $1350-$1500 for painted frameset with handlebar, depending on options and exchange rates.
What bottom bracket standard does it use?
The frameset uses T47 threaded bottom bracket standard, which provides good compatibility and ease of maintenance compared to press-fit systems.
What is the tire clearance?
The frame can accommodate up to approximately 35mm tires with 4mm clearance on each side, though some users report contact with chainstays before seatpost.
Are decals mandatory on painted frames?
Yes, for painted framesets, branding decals (including "XMCS" and "Revenger") are mandatory and applied under clear coat, though unpainted frames can be ordered without decals.
What are the seatpost issues and are they resolved?
Some early production frames had extremely tight seatpost fit leading to stuck seatposts. The manufacturer has acknowledged this and is revising the seatpost design with two-bolt clamp and offering 0mm offset options for improved fit.
What is the frame weight?
Frame weight is approximately 997-1018g for size 56 unpainted, with painted versions adding about 100g. Complete frameset with fork, seatpost, and hardware weighs around 1600-1700g.
